3/5 Ply Automatic Corrugated Board Plant
Corrugated Paper Box Machinery




ACME Single/Two Colour Board Printer Slotter, Creaser


The machine is fully automatic kicker feeding, variable speed drive can be supplied with flexo printing unit. The machine's body is on weels and can be slided easly for setting and cleaning. The speed is approx. 3500 sheets per hour.
From single colour or can add on 2nd / 3rd colour too. The unit is provided with 4 sets of creaser, 1 set of trimming, 3 sets of slotting and 1 set of cutting dies.



TOP

ACME Combined Rotary Creasing, Slotting & Slitting Machine



TECHNICAL SPECIFICATIONS


Sizes 75" - 85" - 95"

4 sets of Creasing
2 sets of Slitting (Trimming)
3 sets of Slotting &
1 set of Corner Cutting




TOP

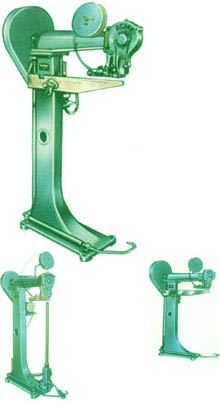

ACME Super Stitch' Box Stitching Machine


The last and final operation before dispatch is of stitching. Box stitching machine is most useful in the box factory. The parts are standardized and are interchangeable. The machine is capable of continuous running at the high speed. Various models of stitching machines are available like Angular-Straight-Bottom etc. You can use flat wire 12 x 25 gauge in all the machines and round wire 21 gauge in straight machine by changing some parts. The design of the machine is universal and world famous. Very easy in operation and also for servicing & repairing. All the spares are always available all around the world.

TECHNICAL SPECIFICATIONS

Size

Floor space

H. P.

Weight Kg.

Speed stitch
Per min.

20"

35" x 16"

0.5

250

300

30"

45" x 16"

0.5

275

300

36"

52" x 16"

0.5

300

300

48"

70" x 16"

0.5

350

300

Sizes - 20", 30", 36", 40"

TOP

ACME Platen Punching Machine


SALIENT FEATURES

  • A range of machines particularly suitable for Die-cutting, Scoring & creasing work, on paper, card board, corrugated card board etc.

  • The platen drive transmission is oil immersed with a large oil reservoir for increased heat dissipation

  • Lubrication is positive .All parts of the press are pressure lubricated automatically with a hand pump mechanism

  • Frame & platen are of high tensile cast iron

  • Platen is driven from the anti-friction bearing mounted main shaft by two high-speed helical gears & by reduction helical gears

  • Back gear shaft, reduction gear shaft & connecting arms mounted in P-Bronge bushings

  • Connecting arms are of single piece & are of high tensile steel

  • Heavy-duty clutch & brake are synchronized for automatic stop whenever clutch is dis-engaged

  • Easily adjusted for automatic stop after each stroke or continuous operation

  • Double micrometer impression adjustment allows impression control. Each side of the platen can be adjusted independently of the other. however platen setting should be exactly the same

  • Compact design requires a minimum of floor space.

Technical Data & Information

Electro Magnetic Clutch & Brake

Machine Size i.e. inside chase measurement
Platen size
Floor space
Power H.P.
Speed strokes per min.
Weight Kgs.
19" x 25"
49cms x 64cms
20" x 26"
51cms x 66cms
52" x 60"
133cms x 153cms
3 28 2200
20" x 30"
51cms x 79cms
21" x 32"
54cms x 82cms.
55" x 60"
150cms x 153cms
3 28 2500
25" x 37"
63.5cms x 94cms
26" x 38"
66cmsx 96.5cms
60" x 66"
153 cms x 168cms
5 32 0
30" x 41"
76cms x 104cms
32" x 43"
81.5cmsx109.5cms
70" x 70"
180cms x 180cms.
7.5 32 5000
40" x 50"
101.5cms x 127cms.
42" x 52"
112.2cmsx132cms
84" x 84"
231cms x 231cms
10 32 6000



TOP

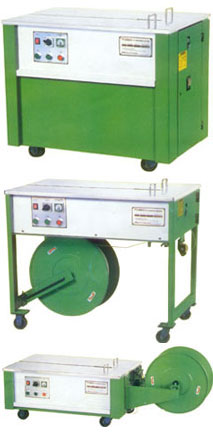

ACME Semi Automatic Box Strapping Machine



SALIENT FEATURES

  • 100% Indigenous components ensure easy availability of service parts.

  • Simple in Design - easy to maintain.

  • Instant heating system with tolerance +5% 0C prevents short circuit or damage to heater due to over oxidization.

  • 30 seconds warm up., quiet intermittent action control.

  • With start over device, can shoot troubles automatically and carry on the strapping cycle.

  • With excellent quality of timer, solenoid and other electrical components.

    TECHNICAL SPECIFICATIONS


MODEL

AMC-011

AMC-022

AMC-007

Type of Model

TABLE

ECONOMY

FLOOR

Dimensions

900 mm(L)

900 mm(L)

900 mm(L)

570 mm(W)

570 mm (W)

570 mm(W)

750 mm(H)

750 mm(H)

400 mm(H)

Net Weight

105 kgs

95 kgs

85 kgs

Strapping Speed

12 Straps Per Minute (2.5 sec.)

Package Size Minimum

60 mm (W)

Maximum

1500 mm x 1500 mm x 1500 mm

Power supply

240 V 50 Hz

Driving Motor

250 W x 1 (1/4 H.P.)

Strap Width

6 - 9 - 12 - 15 mm
