3/5 Ply Automatic Corrugated Board Plant
Corrugated Paper Box Machinery

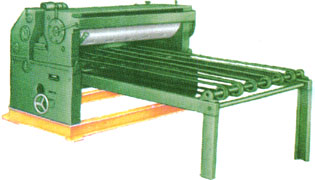

ACME Reel Sheeting machine


This machine can be operated in alignment of corrugating machine instead of rewinding and making roll of single phaser. It will avoid the labour of 2 to 3 persons to cut on board cutter. The machine is attached with P.I.V Gear unit to cut into the required size. Moreover the machine is provided with variable speed drive to align the corrugation. It can cut the paper into 2 to 3 Nos. at a time from paper reels.

TECHNICAL SPECIFICATIONS

Size

45"

52"

62"

66"

Motor H. P.

2

3

3

5

Max Output P. M.

300 ft./mt.

250 ft./mt.

250 ft./mt.

225 ft./mt.



TOP

ACME Corrugated Sheet Gluing (Pasting) Machine



This machine can be operated in alignment of corrugating machine instead of rewinding and making roll of single phaser. It will avoid the labour of 2 to 3 persons to cut on board cutter. The machine is attached with P.I.V Gear unit to cut into the required size. Moreover the machine is provided with variable speed drive to align the corrugation. It can cut the paper into 2 to 3 Nos. at a time from paper reels.

TECHNICAL SPECIFICATIONS

Size

Length

Width

Height

Motor

Speed Running ft. per minute

Weight App. Kgs.

60" 150 cms

98" 245 cms

30" 75 cms

42" 105 cms

1 H.P.

200

600

75" 180 cms

108" 270 cms

30" 75 cms

42" 105 cms

1 H.P.

200

750

85" 210 cms

120" 300 cms

30" 75 cms

42" 105 cms

1 H.P.

200

900

96" 240 cms

132" 330 cms

30" 75 cms

42" 105 cms

1 H.P.

200

1200



TOP

ACME Sheet Pressing Machine



Acme Sheet Pressing Machine is manufactured for pressing the corrugated sheets after lamination. The machine is heavy duty, fabricated from steel channels and angles with wooden platforms is given with two long sturdy screws and worm gears. Electric Motor mounted on top. Two strong springs are fitted for regularising and for even pressure on the sheets. The up and down movements of pressing platform can be done by reversible switch.

TECHNICAL SPECIFICATIONS

Size

Length

Width

Height

Power
H. P.

Weight
App. Kgs.

45" x 65"
112 x 162 cms

67" 167 cms

47" 117 cms

102" 255 cms

2

1000 kgs.

65" x 75"
162 x 187 cms

77" 192 cms

67" 167 cms

108" 270 cms

2

1200 kgs.

65" x 90"
162 x 225 cms

92" 230 cms

67" 167 cms

115" 287 cms

3

1500 kgs.



TOP

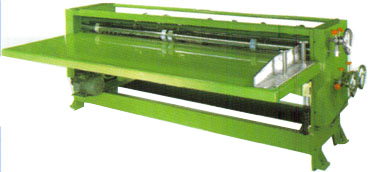

ACME Four Bar Rotary Creasing And Slitting Machine



The first process in box making is to crease and slit the corrugated sheets, once vertically and afterwards horizontally to the required length and width.
The machine is heavy duty and sturdy, mounted on U channel platform properly leveled. The creasing dies and the cutters are in two halves and are easily adjustable as per required sizes.

 The machine is provided with two Nos. of gauges (left and right) on the feeding table to make use of both the ends. All the four shafts are fitted on ball bearings for smooth running. Up and down movement of the shafts are provided through Eccentric bushes. One steering wheel is provided to rotate by hand and check the proper adjustment. Oil cups are provided for proper lubrication, Safety guard is fitted to the side of V belts.

TECHNICAL SPECIFICATIONS

Size

Length

Width

Height

Motor
HP

Speed running
Ft. per
Minute

Weight
Kgs.

65" 162 cms

82" 205 cms

42" 105 cms

44" 110 cms

1

350

2000

75" 187 cms

92" 230 cms

60" 150 cms

44"110 cms

1.5

350

3000

85" 217 cms

104" 260 cms

60" 150 cms

42" 110 cms

1.5

350

3500

96" 240 cms

120" 306 cms

65" 162 cms

46" 115 cms

2

350

4000

120" 300 cms

150" 375 cms

65" 115 cms

46"

3

350

5000



TOP

ACME Eccentric Slotter


Speed: All the machines are running approx.25 to 30 strokes per minutes. Minimum distance between two slots is 4" (10 cms). Maximum distance between slot at one end & 'L' shape corner cutting at other end is about 5" less than the size of the machine.

The next operation after creasing will be slotting in the corrugated board for making the box. The machine is provided with three slots and one L cutting. The Eccentric Slotting machine is ideal for slotting on both sides with L shaped cutting. The bottom portion (female knives) are moving on rack and can make the adjustment as per our requirement. The gauge is provided on the table and on the knives for the required depth. One steering wheel is also provided to operate by hand to check the proper adjustment. Oil cups are provided for lubrication. Safety guards are also provided.

TECHNICAL SPECIFICATIONS

Size

Length

Width

Height

Power
HP

Slot
depth

Weight
kgs.

65" 162 cms

94" 235 cms

58" 145 cms

54" 135 cms

2

12" 30 cms

2000

75" 187 cms

96" 240 cms

65" 162 cms

62" 155 cms

2

18" 45 cms

3000

85"  217 cms

110" 275 cms

65"  162 cms

62" 155 cms

3

18" 45 cms

3500

100" 250 cms

125" 312 cms

70" 175 cms

62" 155 cms

5

18" 45 cms

4200

120" 300 cms

150" 375 cms

75" 187 cms

65" 162 cms

7.5

20" 50 cms

5000
